Thông tin chi tiết sản phẩm:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 7.0 inch |
|---|---|---|---|
| Resolution: | 800×600 | Contrast Ratio: | 500:1 (Typ.) |
| Active Area: | 141.6×106.2 mm | Response Time: | 20 (Typ.)(Tr+Td) |
| Điểm nổi bật: | industrial lcd screen,industrial lcd panel |
||

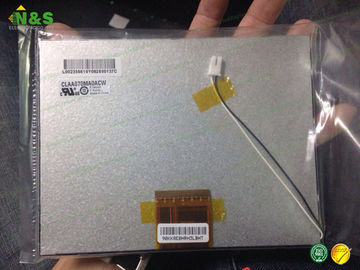

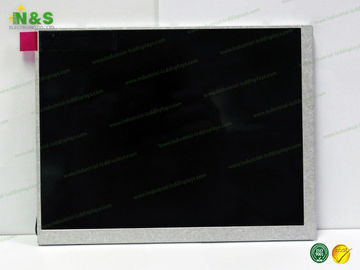

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF045LA31 AX | CPT | 4.5" | 480×854 |
| CLAF022GH21A0 | CPT | 2.2" | 240×320 |
| CLAF024G421 AX | CPT | 2.4" | 240×320 |
| CLAF022GJ01 AX | CPT | 2.2" | 240×320 |
| CLAF050JD01 00XC | CPT | 5.0" | 480×272 |
| CLAF050JD01CX | CPT | 5.0" | 480×272 |
| CLAF024G201C0 | CPT | 2.4" | 480×234 |
| CLAF024G421 AX | CPT | 2.4" | 240×320 |
| CLAF022GJ01 AX | CPT | 2.2" | 240×320 |
| CLAF050JD01 00XC | CPT | 5.0" | 480×272 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
CLAA070MA0ACW Basic Information
| Panel Model | CLAA070MA0ACW |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Remarks | DE/SYNC mode selectable |
CLAA070MA0ACW Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 143 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.059×0.177 mm (H×V) |
| Pixel Pitch | 0.177×0.177 mm (H×V) |
| Weight | 165g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 141.6×106.2 mm (H×V) |
| Bezel Area | 144.9×109.4 mm (H×V) |
| Outline Dimension | 154×119.2 mm (H×V) |
| Outline Depth | 5.1±0.3 mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA070MA0ACW Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
