Thông tin chi tiết sản phẩm:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 10.1 inch |
|---|---|---|---|
| Resolution: | 1024×600 | Outline: | 235×143×5.2 mm |
| Surface: | Antiglare, Hard coating | Frequency: | 60Hz |
| Điểm nổi bật: | industrial touch screen display,industrial lcd panel |
||

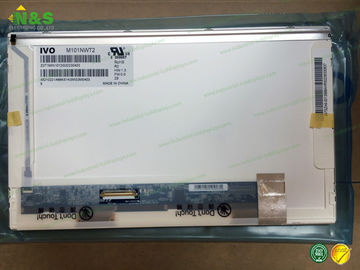

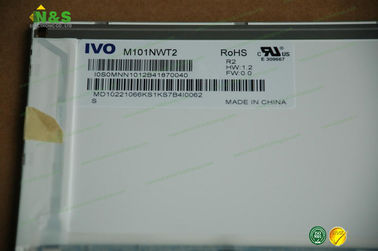

Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
M101NWT2 R2 Basic Information
| Panel Model | M101NWT2 R2 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | M101NWT2-R2 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
M101NWT2 R2 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 190g (Max.) |
| Surface | Antiglare, Hard coating |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.42×128.48 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWT2 R2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C097SNX1 R0 | IVO | 9.7" | 1024×768 |
| P062SWP1 R1 | IVO | 6.2" | 800×480 |
| P101NWT4 R0 | IVO | 10.1" | 1024×600 |
| C055SWA3-0 | IVO | 5.5" | 720×1280 |
| C050SWZ9-0 | IVO | 5.0" | 540×960 |
| C050SWA6 R0 | IVO | 5.0" | 720×1280 |
| C060SWA4-0 | IVO | 6.0" | 720×1280 |
| C060SWA3 R0 | IVO | 6.0" | 720×1280 |
| C080SWW3-0 | IVO | 8.0" | 800×1280 |
| C055SWY2-0 | IVO | 5.5" | 480×854 |
| C050SWY8-1 | IVO | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
