Thông tin chi tiết sản phẩm:
|
| Panel Model: | M104GNX1 R1 | Panel Size: | 10.4 inch |
|---|---|---|---|
| Resolution: | 1024×768 | Active Area: | 211.2×158.4 mm |
| Surface: | Antiglare, Hard coating (3H) | Input Voltage: | 3.3V (Typ.) |
| Điểm nổi bật: | industrial lcd screen,industrial lcd panel |
||
Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.)
M104GNX1 R1 Basic Information
| Panel Model | M104GNX1 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | M104GNX1-R1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M104GNX1 R1 Mechanical Features
|
Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.06875×0.20625 mm (H×V) |
| Pixel Pitch | 0.20625×0.20625 mm (H×V) |
| Weight | 290g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.8×162.0 mm (H×V) |
| Outline Dimension | 236×176.9 mm (H×V) |
| Outline Depth | 5.7±0.3 mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C035SWN1-4 | IVO | 3.5" | 320×480 |
| C090NWP1 R0 | IVO | 9.0" | 800×480 |
| C054SWN1-1 | IVO | 5.4" | 540×960 |
| C045SWY1-1 | IVO | 4.5" | 480×854 |
| C039SWN3-0 | IVO | 3.9" | 272×480 |
| C039SWN1-0 | IVO | 4.0" | 320×480 |
| C090SWT3-0 | IVO | 9.0" | 1024×600 |
| G046SWN1 R1 | IVO | 4.6" | 480×854 |
| C052SWP1-3 | IVO | 5.2" | 480×800 |
| C054SWN1-0 | IVO | 5.4" | 540×960 |
| C078SNX1-0 | IVO | 7.9" | 768×1024 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk

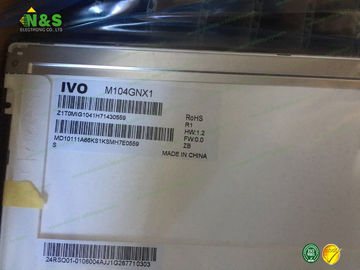

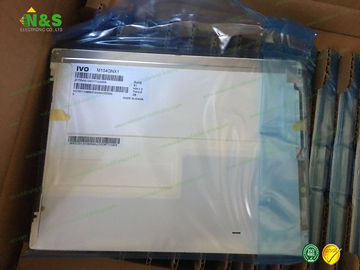

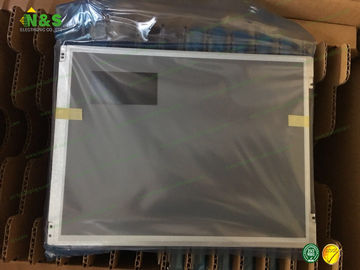

M104GNX1 R1 Picture
