Thông tin chi tiết sản phẩm:
|
| Panel Size: | 11.6 inch | Luminance: | 220 cd/m² (Typ.) |
|---|---|---|---|
| View Direction: | 6 o'clock | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Frame Rate: | 60Hz | ||
| Điểm nổi bật: | industrial touch screen display,industrial lcd panel |
||

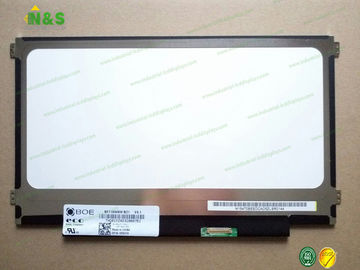

Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)
NT116WHM-N21 Basic Information
| Panel Model | NT116WHM-N21 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for Dell |
NT116WHM-N21 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 210g (Max.) |
| Surface | Hard coating (7H) |
| Active Area | 256.125×144 mm (H×V) |
| Outline Dimension | 268×168 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT116WHM-N21 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.28/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TT080WXG-N11 | BOE | 8.0" | 800×1280 |
| TV079X0Q-N50 | BOE | 7.9" | 768×1024 |
| TV079X0S-NA0 | BOE | 7.9" | 768×1024 |
| BA070WV2-100 | BOE | 7.0" | 800×480 |
| TV070WSG-N80 | BOE | 7.0" | 600×1024 |
| TT070WSQ-N80 | BOE | 7.0" | 600×1024 |
| BV055FHM-N00 | BOE | 5.5" | 1080×1920 |
| BA035HV3-800 | BOE | 3.5" | 320×480 |
| BF050HDQ-100 | BOE | 5.0" | 720×1280 |
| BT045FWQ-N80 | BOE | 4.5" | 480×854 |
| BS050HDE-N41-6Q00 | BOE | 5.0" | 720×1280 |
| BV050HDE-N44 | BOE | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
