Thông tin chi tiết sản phẩm:
|
| Panel Type: | a-Si TFT-LCD | Resolution: | 1600×1200 |
|---|---|---|---|
| Panel Size: | 15.0 inch | Contrast Ratio: | 500:1 (Typ.) |
| Display Colors: | 262K (6-bit) | ||
| Điểm nổi bật: | industrial touch screen display,industrial lcd panel |
||

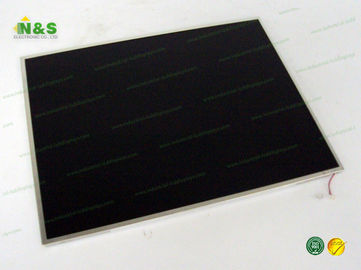

HV150UX1-100 Basic Information
| Panel Model | HV150UX1-100 |
| Panel Brand | BOE HYDIS |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 70 °C |
HV150UX1-100 Mechanical Features
| Dot Resolution | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 540g (Typ.) |
| Surface | Antiglare (Haze 45%), Hard coating (2H), Antireflection |
| Active Area | 304.8×228.6 mm (H×V) |
| Bezel Area | 308.2×232.0 mm (H×V) |
| Outline Dimension | 317.3×242 mm (H×V) |
| Outline Depth | 6.5 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV150UX1-100 Optical Features
| Display Mode | FFS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.303; Wy:0.329 |
| White Variation | 1.18/1.25 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
