Thông tin chi tiết sản phẩm:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 15.0 inch |
|---|---|---|---|
| Active Area: | 304.1×228.1 mm | Outline: | 350×266.5 mm |
| Surface: | Antiglare | ||
| Điểm nổi bật: | industrial touch screen display,industrial lcd screen |
||

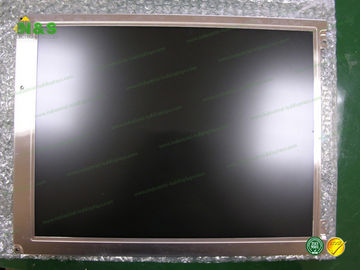

Normally White CLAA150XA03 CPT 15.0 inch Active Area 304.1×228.1 mm Surface Antiglare Frequency 60Hz new and original
CLAA150XA03 Basic Information
| Panel Model | CLAA150XA03 |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Optical Compenation Film |
CLAA150XA03 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.30Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 350×266.5 mm (H×V) |
| Outline Depth | 14.5 (Typ.) mm |
| Holes & Brackets | Face mounting holes (3-Φ3.5, 2-R1.57) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA150XA03 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 13/27 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.328 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| HSD045F8W1-C01 | HannStar | 4.5" | 480×854 |
| H160QVN01.0 | AUO | 1.6" | 320×320 |
| LSN133DL01-A02 | Samsung | 13.3" | 2560×1600 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LSC480HN08 | Samsung | 48" | 1920×1080 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
